Product Details

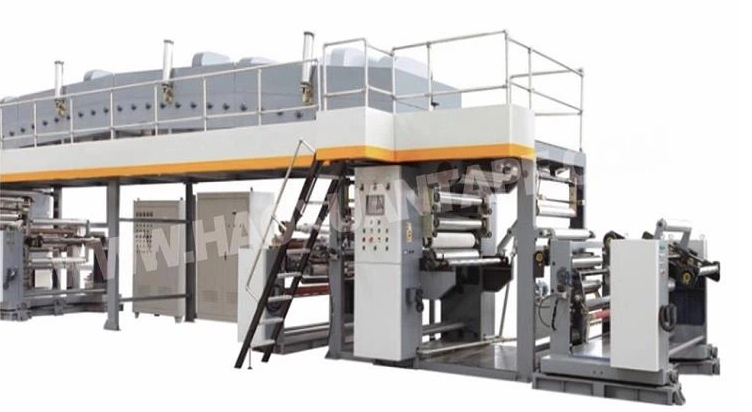

TB-08 High-speed BOPP tape coating machineFeature
1.Mesh bottom glue with active mode smoothing equipment;straight-scraping transfer printing type gluing,laminating all kinds of basis materials.
2.Double-position air-operated unwinding and rewinding.
3.Automatic switching,cutting cloth and connecting film.
4.Segmentation control temperature and adjustment according to the technical process.
1. Main Application
1.1. Used to produce BOPP packing tape;
1.2. Suitable material:
1.2.1. Base material: BOPP film (0.023-0.032mm) ;
1.2.2. Glue: acrylic acid glue, solid content no less than 55%, viscosity: 150~200CPS.
| Max-coating width |
1600mm |
|
Max-unwind diameter |
800mm |
|
Max-rewind diameter |
800mm |
|
Max-machine speed |
260m/min |
|
Heating method |
steam/thermal oil/electric/hot blast stove |
