Product Details
APPLICATION:
Suitable for Sitting BOPP tapes, stationery tapes.. FEATURES:
FEATURES:

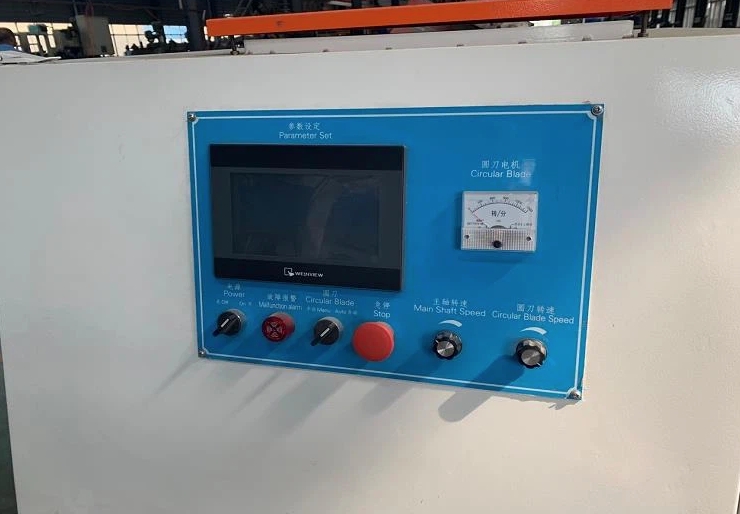

· centralized control panel: all operations are centralized in one panel.
· Advanced three -step length setting: this length setting provides extremely smooth rewinding operation to ensure accurate rewinding length.
. Automatic shaft exchange: once the rewinding operation is finished, the machine will automatically perform shaft exchanges for convenient and efficient operations.
. Expanding arc roller; the expanding roller is specially designed with an arch shape for accurate tape tracking and proper tension control to completely eliminate material winking.
· Air blades: this unit is fitted with 3" air blades, permitting the slitting of a variety of tapes. The knife positions can be adjusted in left/right directions and the pressure of the air blades can be adjusted to suit tape material variation.
. Reduce noise: the roller of jumbo roll reduces noise to a minimum while in operation.
TECHNICAL PARAMETER:
| Machinery effective width |
0.5M/1.0M/1.3M/1.6M |
|
Paper core inner diameter |
1"-3" |
|
Min-slitting width |
8mm |
|
Mechanical speed |
0-180m/min |
|
Max-unwind diameter |
800mm |
|
Strip cutting tools |
Industrial blade/pneumatic knife |
